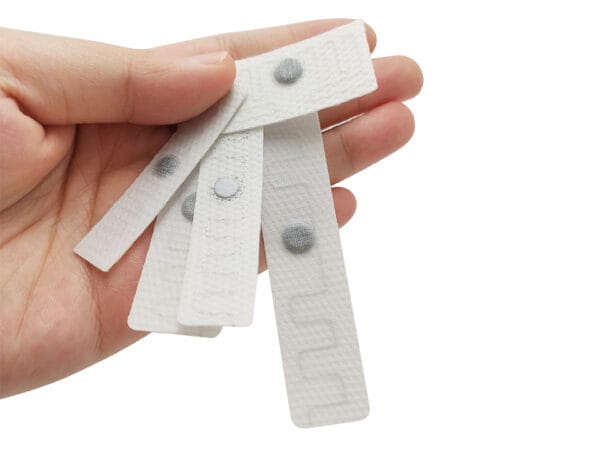

UHF RFID Laundry Tag for Apparel Management
UHF RFID Laundry Tag make textile tracking simple, reliable, and efficient even in high-volume laundry environments. Designed to withstand repeated washing and sterilisation, these tags help hotels, hospitals, and uniform services
UHF RFID Laundry Tag for Apparel Management
✔ Latest NXP UCODE 9 chip.
✔ Unique QRCODE and Number.
✔ Multiple and simultaneous reading.
✔ High durability, complete flexibility and heat-seal capability.High durability, complete flexibility and heat-seal capability.

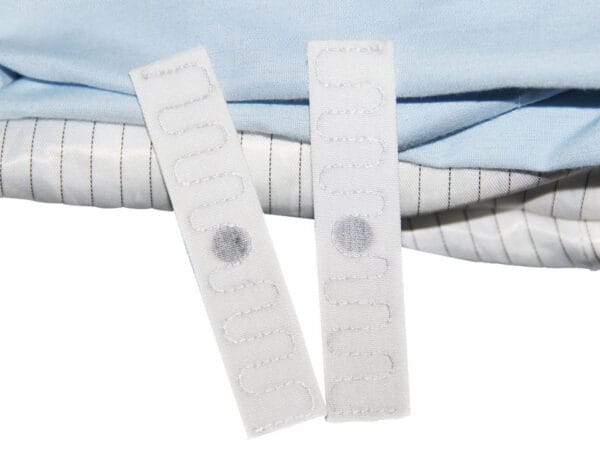

RFID laundry tags or rfid washable tags are specially designed to meet the tracking requirements of the laundry industry and uniform management in hotel or hospital etc. It is easily affixed onto textile products using a standard sewing process, it can be sewed along the edge of the item or embedded into the Item, and can bear washing, dry clean, high temperature sterilization.
Product info
• Maximum flexibility
• Very good reading performance in the most compact form factor.
• Tested in real laundries and guaranteed for 200 washing cycles with water extractors up to 60 bar.
• ISO I8000-6C compliant
Technical Specification:
| Product Name | Soft Flexible UHF RFID Laundry Tag |
| Material | Fabric |
| Size | 35mm x 15mm; 58mm x 15mm;70mm x 15mm or customized Thickness 1.6 mm |
| Weight | 1.3g |
| Oprating frequency | 865~868MHz,902~928MHz |
| Chip | U8/U9(In stock) |
| Memory | 96 bits EPC |
| Reading distance | Up to 5m(Foxed reader) Up to 2.5m(Handheld reader) |
| Warranty | First of 200 wash cycles or 100 autoclave cycles or 3 years from ship date |
| Typical washing cycle | Washing: +90°C (I94°F), I5 minutes Drying: +I80°C (356°F), 3 minutes lroner: +200°C (392°F), I2 seconds Water Extractor: 60 bar, 80 seconds |
| Storage Temperature | -40°C to +I20°C (-40°F to +248°F) |
| Mounting method | Sewn,pouched |
| Affixes to | Linens and garments |
